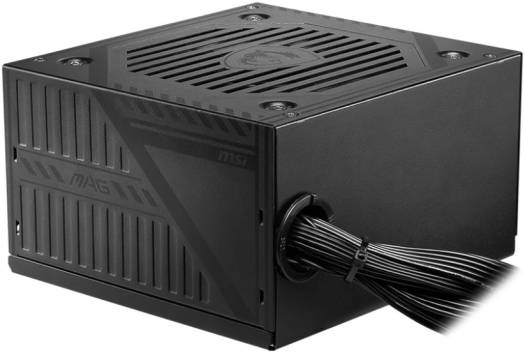

MSI MAG A600DN Non-Modular Power Supply, 600W Power, 80 Plus Standard Efficiency, 120mm Hydro Bearing Fan, Active PFC, Flat Cable Equipment, Black | 306-7ZP6B18-809
()
Size
Check
serviceability at your Pincode
MAG A600DN Power Supply Key FeaturesÂ
120mm Fan
Industrial level protection with OCP,OVP,OPP,OTP, SCP,UVP
Active PFC Design
Flat Cable Equipment
  SpecificationsÂ
Efficiency Rating
80 PLUS Standard (up to 80%)
Modular
No
Fan Size
120 mm
Fan Bearing
Hydro Bearing
Dimensions (DxWxH)
150mm x 140mm x 86mm / 5.91 x 5.51 x 3.39 inches
PFC Type
Active PFC
Input Voltage Range
110-240~
Power Watt
600W
Input Frequency Range
50~60Hz
Protection
OCP, OVP, OPP, OTP, SCP, UVP
ATX (24 PIN)
1
EPS (4+4 PIN)
1
PCI-E (6+2 PIN)
2
SATA (15 PIN)
5
MOLEX (4 PIN)
2
FDD (4 PIN)
1
Efficiency Rating
80 PLUS Standard (up to 80%)
Modular
No
Fan Size
120 mm
Fan Bearing
Hydro Bearing
Dimensions (DxWxH)
150mm x 140mm x 86mm / 5.91 x 5.51 x 3.39 inches
PFC Type
Active PFC
Input Voltage Range
110-240~
Power Watt
600W
Input Frequency Range
50~60Hz
Protection
OCP, OVP, OPP, OTP, SCP, UVP
ATX (24 PIN)
1
EPS (4+4 PIN)
1
PCI-E (6+2 PIN)
2
SATA (15 PIN)
5
MOLEX (4 PIN)
2
FDD (4 PIN)
1
