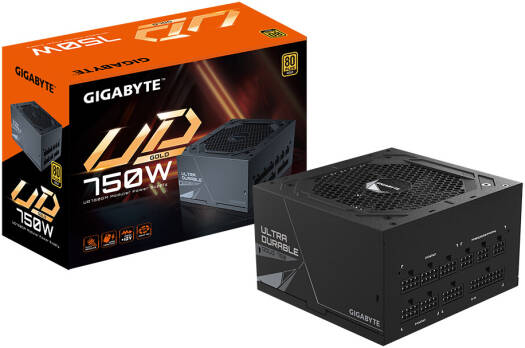

GIGABYTE UD750GM Fully Modular Power Supply, 750W Power, 80 PLUS Gold Efficiency, 120mm Hydraulic Bearing Fan, ATX 12V v2.31, Black | GP-UD750GM
()
Size
Check
serviceability at your Pincode

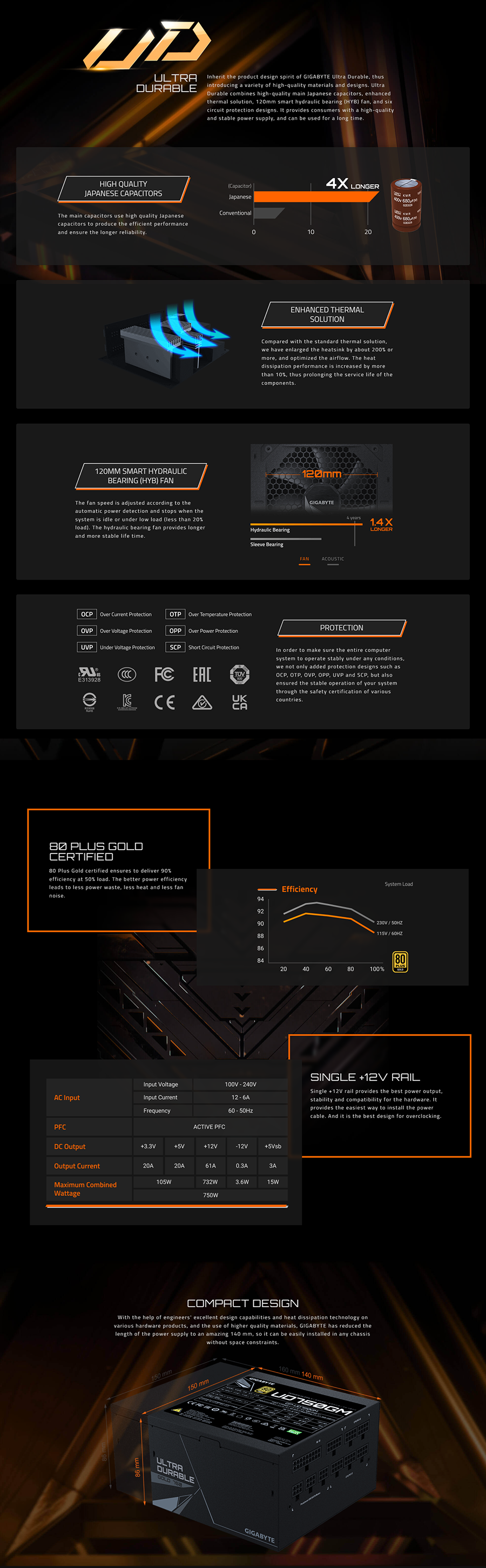

UD750GM  ULTRA DURABLEInherit the product design spirit of GIGABYTE Ultra Durable, thus introducing a variety of high-quality materials and designs. Ultra Durable combines high-quality main Japanese capacitors, enhanced thermal solution, 120mm smart hydraulic bearing (HYB) fan, and six circuit protection designs. It provides consumers with a high-quality and stable power supply, and can be used for a long time.  SpecificationsÂ
Model
GP-UD750GM
Type
Intel Form Factor ATX 12V v2.31
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing (HYB) fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1: 610mm*1
CPU/EPS 4+4 Pin x 2: 600mm*2
PCI-e 6+2 Pin x 4: 600mm+150mm*2
SATA x 8: 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1: 500mm+120mm+120mm+150mm*1
Model
GP-UD750GM
Type
Intel Form Factor ATX 12V v2.31
PFC
Active PFC (>0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing (HYB) fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-150ms
Hold Up Time
>16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1: 610mm*1
CPU/EPS 4+4 Pin x 2: 600mm*2
PCI-e 6+2 Pin x 4: 600mm+150mm*2
SATA x 8: 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 3+4-Pin floppy x 1: 500mm+120mm+120mm+150mm*1
