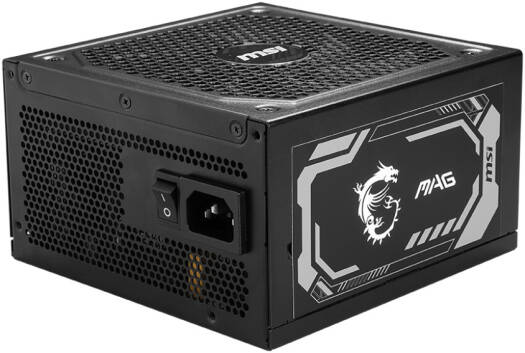

MSI MAG A1250GL PCIE5 Fully Modular Power Supply, 1250 Watts, 80 Plus Gold Certified, ATX 3.1 Ready, Active PFC, 135 mm Fluid Dynamic Bearing Fan, Half Bridge LLC + SR + DC/DC, Black | 306-7ZP9A18-CE0
()
Size
Check
serviceability at your Pincode
Power your build with the MAG A1250GL PCIE5 80 PLUS Gold Modular Power Supply from MSI. Providing you with up to 1250W, the A1250GL provides you with ample connectivity options for low- to medium-powered builds.Equipped with a single 1250W +12V rail, you have enough power to support a wide range of configurations. The A1250GL sports a full-modular design with sleeved cables that allows you to pick and choose the cables you need, saving space within your chassis and optimizing airflow. The A1250GL includes multiple connectors such as the standard 24-pin and EPS 4+4-pin connectors for your motherboard. You also get four PCIe 6+2-pin, twelve SATA, four MOLEX, and one FDD connector. Additionally, a dedicated PCIe 5.0 12VHPWR connector supports NVIDIA 40-series graphics cards, supporting up to 600W of power. An 80 PLUS Gold rating provides you with up to 90% and 87% efficiency at half and full loads, respectively.  Specifications: Â
EFFICIENCY RATING
80 PLUS Gold (up to 90%)
MODULAR
Yes (fully modular)
FAN SIZE
135 mm
FAN BEARING
Fluid Dynamic Bearing
DIMENSIONS (DXWXH)
150 x 150 x 86 mm
PFC TYPE
Active PFC
INPUT VOLTAGE RANGE
100-240V~
POWER WATT
1250W
POWER EXCURSION
2500W (*up to 200% of the PSU's rated power for 100?s)
INPUT FREQUENCY RANGE
50-60Hz
PROTECTION
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN)
1
EPS (4+4 PIN)
2
PCI-E 5.1 (16 PIN)
1 (600W)
PCI-E (6+2 PIN)
4
SATA (15 PIN)
12
MOLEX (4 PIN)
4
FDD (4 PIN)
1
EFFICIENCY RATING
80 PLUS Gold (up to 90%)
MODULAR
Yes (fully modular)
FAN SIZE
135 mm
FAN BEARING
Fluid Dynamic Bearing
DIMENSIONS (DXWXH)
150 x 150 x 86 mm
PFC TYPE
Active PFC
INPUT VOLTAGE RANGE
100-240V~
POWER WATT
1250W
POWER EXCURSION
2500W (*up to 200% of the PSU's rated power for 100?s)
INPUT FREQUENCY RANGE
50-60Hz
PROTECTION
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 PIN)
1
EPS (4+4 PIN)
2
PCI-E 5.1 (16 PIN)
1 (600W)
PCI-E (6+2 PIN)
4
SATA (15 PIN)
12
MOLEX (4 PIN)
4
FDD (4 PIN)
1
There are no ratings for this product yet
Model:
306-7ZP9A18-CE0
SKU:
191813
(VAT inclusive price)
