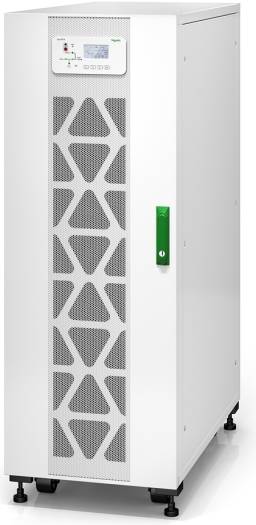

APC 3S 30 kVA Easy UPS, 400V 3 phases Input Voltage, 4 Internal 7Ah Modular Battery Strings, 55A Input Current, VRLA Battery Type, 45-65Hz Input Frequency, White | E3SUPS30KHB2

Overview Presentation Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 30 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 4 internal 7Ah modular battery strings. Main Main Input Voltage 400 V 3 phases Other Input Voltage 380 V415 V Main Output Voltage 400 V 3 phases Other Output Voltage 380 V415 V rated power in W 30 kW Rated power in VA 30 kVA Provided equipment Dust filterInstallation guide Batteries & Runtime Efficiency View Efficiency Graph action_new_window Battery type VRLA Battery voltage 240 V Maximum short-circuit current 10 kA Number of battery filled slots 4 Number of battery free slots 0 Physical Colour White (RAL 9003) Height 140 cm Width 50 cm Depth 96.9 cm Product weight 584 kg USB compatible Yes Input Maximum input current 55 A Input harmonic distortion Less than 3 % for full load Load power factor 0.9 leading to 0.9 lagging Input Power Factor at Full Load 0.99 Input voltage limits 304...477 V Network frequency 45...65 Hz Output Maximum configurable power in VA 30 kVA Maximum configurable power in W 30 kW Output frequency 50 Hz sync to mains60 Hz sync to mains Harmonic distortion Less than 3 % Output harmonic distortion < 3% linear load Output voltage tolerance +/- 1.5 % UPS type Double conversion online Additional information UPS weight does not include battery weight. Conformance Product certifications CEEACRCM Environmental Ambient air temperature for operation 0…40 °C Relative humidity 0…95 % non-condensing Operating altitude 0...3333 ft Ambient air temperature for storage -15…40 °C Storage Relative Humidity 0…95 % non-condensing Storage altitude 0.00…15240.00 m Acoustic level 63 dBA Heat dissipation 1410 Btu/h IP degree of protection IP20 Packing Units Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Height 164 cm Package 1 Width 111.4 cm Package 1 Length 68.3 cm Package 1 Weight 638 kg
