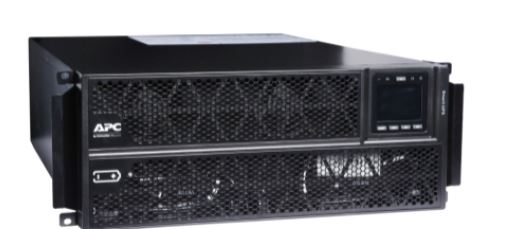

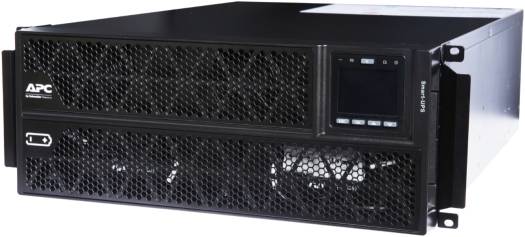

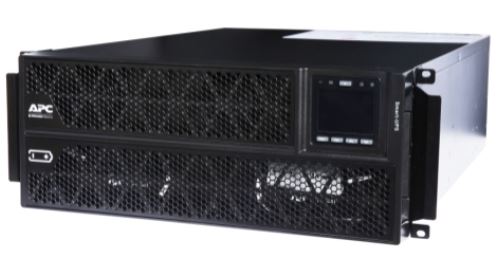

APC RT 6kVA Smart UPS, 230V Input Voltage, Rack Mounted With Kit, Lead Acid Battery Type, 2 IEC 60320 C13 / 1 IEC 60320 C19 Connection, 239W Charger Power, 1 Extended Runtime, Black | SRTG6KXLI
()
Size
Check
serviceability at your Pincode
High density, double-conversion on-line power protection with scalable runtime
Includes: Smart UPS signalling RS-232 cable, User manual
Â
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
Adaptability
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Output
Max Configurable Power (Watts)
6.0kWatts /Â 6.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220Â V, 240Â V
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Internal bypass (automatic and manual)
Input
Input frequency
40 – 70 Hz Auto-sensing
Input voltage range for main operations
160 – 285V
Other Input Voltages
220Â V, 240Â V
Batteries & Runtime
Battery type
Lead-acid battery
Included Battery Modules
2
Typical recharge time
4hour(s)
Nominal Battery Voltage
+/- 96 V
Expected Battery Life (years)
3 – 5
Battery Charge Power (Watts)
239Â Watts
Extendable Run Time
1
Battery Volt-Amp-Hour Capacity
