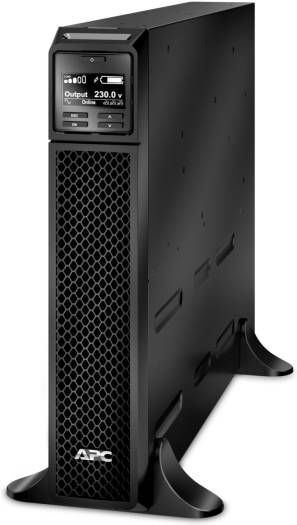

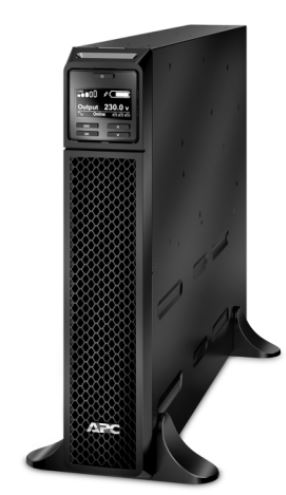

APC SRT 1500VA Smart UPS, 230V Output Voltage, Lead Acid Battery, 6 IEC 60320 C13 Output Connection Type, Rack Mounted With Kit, 1.83m Cable Length, 108W Power, Black | SRT1500XLI
()
Size
Check
serviceability at your Pincode
High density, double-conversion on-line power protection with scalable runtime.
Includes: CD with software, Communication cable, Documentation CD, Installation guide, Removable support feet, USB cable, Warranty card
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
ECO Mode
Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

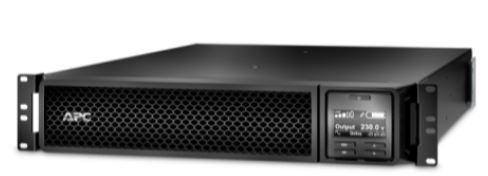

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Smart-UPS On-Line Features & Benefits
Adaptability
Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.
Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.
Â
Output
Max Configurable Power (Watts)
1.5kWatts /Â 1.5kVA
Output Voltage Distortion
Less than 2 %
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages
220Â V, 240Â V
Load Crest Factor
3 : 1
Topology
Double conversion online
Waveform type
Sine wave
Bypass
Built-in bypass
Input
Input frequency
40 – 70 Hz Auto-sensing
Input voltage range for main operations
100 – 275V
Number of Power Cords
1
Other Input Voltages
220Â V, 240Â V
Batteries & Runtime
Battery type
Lead-acid battery
Included Battery Modules
1
Typical recharge time
3hour(s)
Nominal Battery Voltage
48 V
Replacement Battery
APCRBC155
Expected Battery Life (years)
3 – 5
Battery Charge Power (Watts)
108Â Watts
Extendable Run Time
1
Runtime
View Runtime Graph
Communications & Management
Interface Port(s)
RJ-45 Serial, Smart-Slot, USB
Control panel
Multifunction LCD status and control console
Audible Alarm
Audible and visible alarms prioritized by severity
Emergency Power Off (EPO)
Yes
Available SmartSlotâ„¢ Interface Quantity
1
There are no ratings for this product yet
