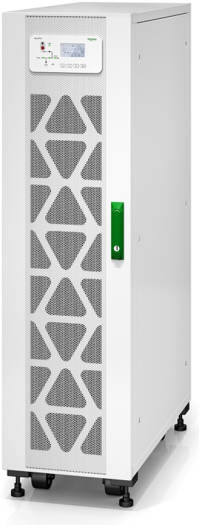

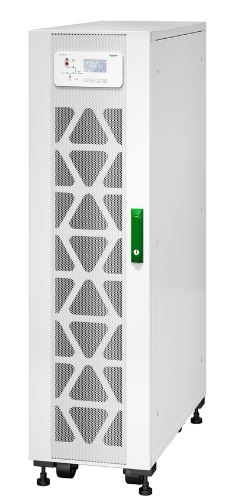

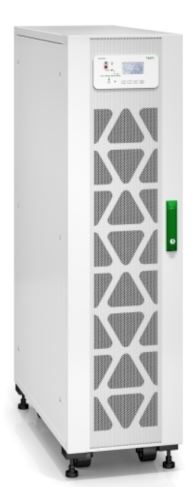

APC 3S 15 kVA Easy UPS, 400 V 3 Phases Input Voltage, 2 Internal 7Ah Modular Battery Strings, Expandable To 3, 28A Input Current, VRLA Battery Type, Extended Runtime Options, White | E3SUPS15KHB2

Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 15 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7Ah modular battery strings, expandable to 3 strings for extended runtime. Output Max Configurable Power (Watts) 15.0kWatts / 15.0kVA Output Voltage Distortion Less than 3 % Output Frequency (sync to mains) 50 Hz Sync to mains, 60 Hz Sync to mains Other Output Voltages 380, 415 Topology Double conversion online Output Voltage THD < 3% linear load Output Voltage Tolerance +/- 1.5 % Input Input frequency 45 – 65 Hz Input voltage range for main operations 304 – 477V Input Total Harmonic Distortion Less than 3 % for full load Other Input Voltages 380, 415 Input Power Factor at Full Load 0.99 Batteries & Runtime Battery type VRLA Included Battery Modules 2 Nominal Battery Voltage 240 V Battery Slots Empty 1 Replacement battery cartridge note UPS weight does not include battery weight. Maximum Available Short Circuit Current 10kAmps Efficiency View Efficiency Graph Communications & Management Interface Port(s) E3S_Parallel, E3S_TempSensor Physical Maximum Height 1400MM, 140.0CM Maximum Width 380MM, 38.0CM Maximum Depth 928MM, 92.8CM Net Weight 436.0KG Shipping weight 481.0KG Shipping Height 1640MM, 164.0CM Shipping Width 563MM, 56.3CM Shipping Depth 1014MM, 101.4CM
