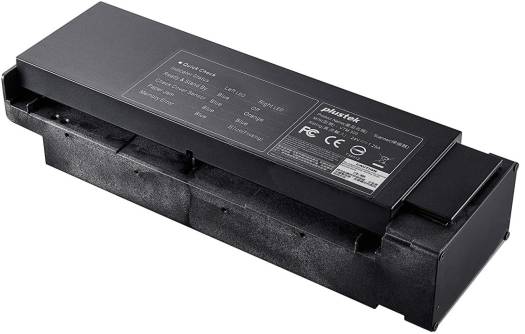

Plustek VTM 300 Scanner, High-Speed Scanning 30ppm, 300dpi, Color, Duplex, A4, Optical Resolution 600 dpi | VTM 300
()
Size
Check
serviceability at your Pincode
Originally Designed for Virtual Teller Machine
No queuing & no need to apply over counter
Less paperwork to boost up work efficiency
Function outside working hours
Easily store and manage files and data
Significantly cut down cost
Application in Telecom Industry
Self-service sim card application kiosk
No need to wait in line for hours
Scan IDs and application forms
Bill payments with barcode recognition
SPECIFICATION
Image Sensor
CIS x 2
Optical Resolution
600 dpi
Hardware Resolution
600 x 600 dpi
Scan Modes
Color: 48-bit Input; 24-bit Output
Grayscale: 16-bit Input; 8-bit Output
B/W: 1-bit
Scanning Speed
Duplex: 2 sec (Color Mode, 300 dpi, A4)
Note: Scanning speed varies, depending upon the scanning software, CPU and RAM of PC.
Scanning Area (W x L)
Max. 216 x 594 mm (8.5" x 23.38")
Std: 210 x 297 mm (8.27" x 11.69")
Acceptable Paper Sizes (W x L)
Max.: 218 x 594 mm (8.58" x 23.38")
Min.: 88 x 54 mm (3.46" x 2.13")
Acceptable Paper Weight (Thickness)
Paper: 50 g/? to 250 g/?
Plastic card: Non-Embossed up to 1 mm & Embossed up to 1.24 mm (ISO 7810)
Daily Duty Scan ( Sheets )
1000
Other Function
Multi Auto-Detection (Hardware):
- Auto-Feed Detection
- Document Feeding Skew Detection
- Paper Jam Detection
- Lid Uncovered Detection
- Motor Stalled Detection
Power Supply
AC Power: 24V / 1.25A
Power Consumption
Operating: Max. 18.5W
Idle: Max. 4.5W
Interface
USB 2.0
Net Weight
1.12 Kgs (2.49 Lbs)
Dimensions (W x D x H)
289 x 107.5 x 60.7 mm (11.38" x 4.23" x 2.39")
Protocol
TWAIN compliant (Option)
OS
Windows Vista / 7 / 8 / 10
Hardware Requirements
Pentium® IV 2.4 GHz processor
One available USB 2.0 Port
1GB RAM (2GB or higher recommended)
1GB free HDD space (2GB or larger recommended)
Operating Environments
Temperature: +5°C to +45°C
Relative Humidity: 20% to 80% RH (No condensation)
Image Sensor
CIS x 2
Optical Resolution
600 dpi
Hardware Resolution
600 x 600 dpi
Scan Modes
Color: 48-bit Input; 24-bit Output
Grayscale: 16-bit Input; 8-bit Output
B/W: 1-bit
Scanning Speed
Duplex: 2 sec (Color Mode, 300 dpi, A4)
Note: Scanning speed varies, depending upon the scanning software, CPU and RAM of PC.
Scanning Area (W x L)
Max. 216 x 594 mm (8.5" x 23.38")
Std: 210 x 297 mm (8.27" x 11.69")
Acceptable Paper Sizes (W x L)
Max.: 218 x 594 mm (8.58" x 23.38")
Min.: 88 x 54 mm (3.46" x 2.13")
Acceptable Paper Weight (Thickness)
Paper: 50 g/? to 250 g/?
Plastic card: Non-Embossed up to 1 mm & Embossed up to 1.24 mm (ISO 7810)
Daily Duty Scan ( Sheets )
1000
Other Function
Multi Auto-Detection (Hardware):
- Auto-Feed Detection
- Document Feeding Skew Detection
- Paper Jam Detection
- Lid Uncovered Detection
- Motor Stalled Detection
Power Supply
AC Power: 24V / 1.25A
Power Consumption
Operating: Max. 18.5W
Idle: Max. 4.5W
Interface
USB 2.0
Net Weight
1.12 Kgs (2.49 Lbs)
Dimensions (W x D x H)
289 x 107.5 x 60.7 mm (11.38" x 4.23" x 2.39")
Protocol
TWAIN compliant (Option)
OS
Windows Vista / 7 / 8 / 10
Hardware Requirements
Pentium® IV 2.4 GHz processor
One available USB 2.0 Port
1GB RAM (2GB or higher recommended)
1GB free HDD space (2GB or larger recommended)
Operating Environments
Temperature: +5°C to +45°C
Relative Humidity: 20% to 80% RH (No condensation)
