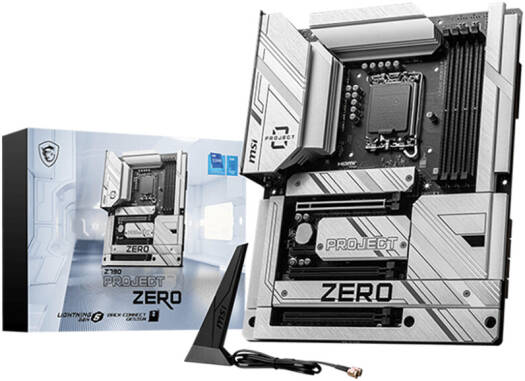

MSI Z790 PROJECT ZERO LGA1700 ATX Motherboard, Intel Z790 Chipset, 4x DDR5 UDIMM / 192GB Max, 3x PCI-E x16, 4x M.2, Wi-Fi 7, ALC897 Codec, USB 3.2 Gen2, HDMI/ DP | 911-7E23-001

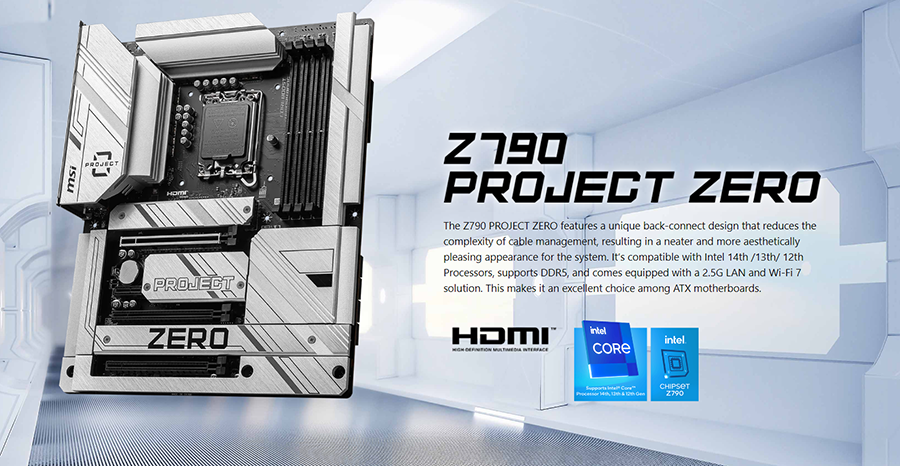

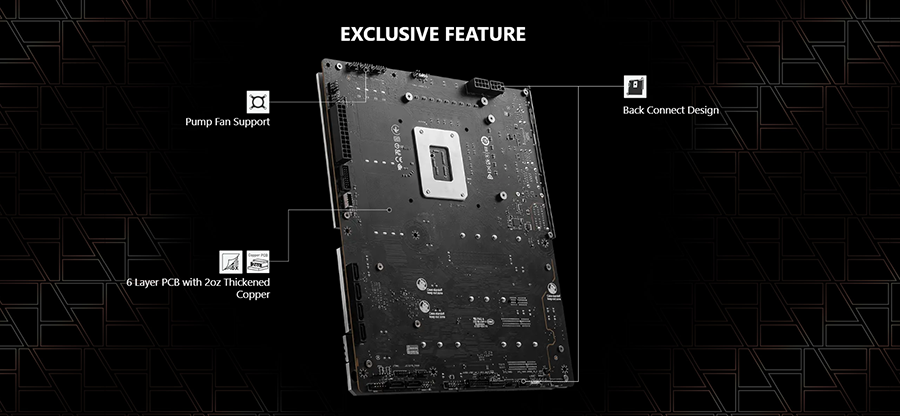

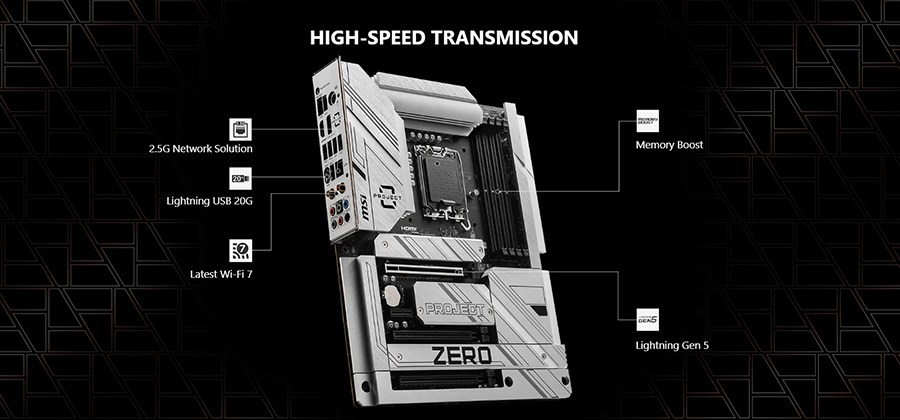

Z790 PROJECT ZERO  The Z790 PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th /13th/ 12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 7 solution. This makes it an excellent choice among ATX motherboards.   Key Features Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket Supports DDR5 Memory, up to 7200+(OC) MHz Enhanced Power Design: 14+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2 Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high-performance system and non-stop works Audio Boost: Reward your ears with studio-grade sound High-Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material         Specifications   Chipset INTEL Z790 CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors, LGA1700 Memory 4x DDR5 UDIMM, Maximum Memory Capacity 192GB   Memory Support:   - 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz   - Max. overclocking frequency:   - 1DPC 1R Max speed up to 7200+ MHz   - 1DPC 2R Max speed up to 6600+ MHz   - 2DPC 1R Max speed up to 6400+ MHz   - 2DPC 2R Max speed up to 5600+ MHz   Supports Dual-Channel mode   Supports non-ECC, un-buffered memory   Supports Intel® Extreme Memory Profile Onboard Graphics 1x HDMI™ (Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*)   1x DisplayPort (Support DP 1.4, maximum resolution of 4K 60Hz*) Slots 3x PCI-E x16 slot   1x PCI-E x1 slot   - PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)   - PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)   - PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)   - PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) Storage 4x M.2   - M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280/2260/2242 devices   - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260/2242 devices   - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices   - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices   6x SATA 6G RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices USB 4x USB 2.0 (Rear)   4x USB 2.0 (Front)   2x USB 3.2 Gen1 Type A (Rear)   4x USB 3.2 Gen1 Type A (Front)   1x USB 3.2 Gen2 Type A (Rear)   1x USB 3.2 Gen2 Type C (Front)   1x USB 3.2 Gen2x2 Type C (Rear) LAN Intel® 2.5Gbps LAN Wireless LAN & Bluetooth Wi-Fi 7   - The Wireless module is pre-installed in the M.2 (Key-E) slot   - Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps   - Supports 802.11 a/ b/ g/ n/ ac/ ax/ be   - Supports Bluetooth® 5.4**, MLO, 4KQAM Audio Realtek® ALC897 Codec   7.1-Channel High Performance Audio   Supports S/PDIF output Internal I/O Various internal connectors including power connectors, fan connectors, USB ports, RGB LED connectors, etc. LED Feature 4x EZ Debug LED Back Panel Ports Mouse / Keyboard   DisplayPort 1.4   USB 2.0   2.5G LAN Port   Wi-Fi / Bluetooth Antenna   HD Audio Connectors   Flash Bios Button   USB 2.0   HDMI™ 2.1 Port   USB 3.2 Gen 1 5Gbps Type-A   USB 3.2 Gen 2x2 20Gbps Type-C   USB 3.2 Gen 2 10Gbps Type-A Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit PCB Info ATX   Dimensions: 243.84mm x 304.8mm
