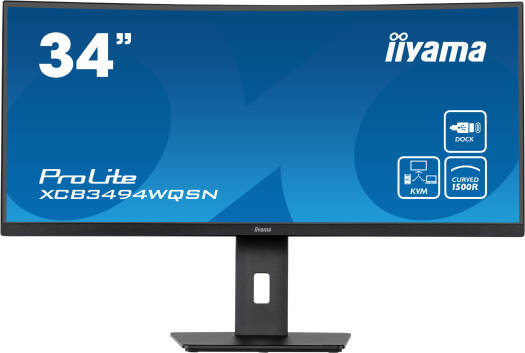

iiyama ProLite XCB3494WQSN-B5 Curved Monitor, 34" UWQHD VA Display, 120Hz Refresh Rate, 0.4ms Response Time, KVM Switch, Flicker-Free Feature, USB-C Dock, Black | XCB3494WQSN-B5
()
Size
Check
serviceability at your Pincode
ProLite XCB3494WQSN-B5 34’’ UWQHD curved with USB-C dock, KVM switch and 150mm height adjustable standInspired by the curve of the human eye, the 1500R curved VA screen offers superb images along with a comfortable and immersive viewing experience. Equipped with the KVM switch, the XCB3494WQSN enables you to connect multiple computers which can be operated over one console (monitor, keyboard, mouse). The USB-C dock connector allows you to simplify your workspace by using a single cable to both send the signal from your notebook to your monitor while charging the notebook from the monitor. Additionally, if your monitor is connected to the Internet via a LAN cable, your notebook will automatically be connected to the network.The 150mm height-adjustable stand ensures you can adjust the screen position to your preferences, and the flicker-free panel with blue light reducer function reduces eye fatigue.  SpecificationsÂ
Â
DISPLAY CHARACTERISTICS
Â
Design
Curved
Diagonal
34", 86.4 cm
Panel
VA panel, matte finish
Curved
1500R
Native resolution
3440 x 1440 @120Hz (4.9 megapixel UWQHD, DisplayPort & USB-C)
Aspect ratio
21:9
Panel brightness
300 cd/m²
Static contrast
3000:1
Advanced contrast
80M:1
Response time (MPRT)
0.4ms
Viewing zone
Horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support
16.7mln (sRGB: 99%; NTSC: 93%)
Horizontal Sync
30 - 185kHz
Viewable area W x H
797.2 x 333.7mm, 31.4 x 13.1"
Pixel pitch
0.232mm
Colour
Matte, black
INTERFACES / CONNECTORS / CONTROLS
Â
Signal input
HDMI x1 (v.2.0, 3440 x 1440 @ 100Hz), DisplayPort x1 (v.1.2, 3440 x 1440 @ 120Hz)
USB HUB
x3 (v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA))
USB-C
x1 (3440 x 1440 @ 120Hz, PD 65W)
USB-C DOCK
x1 (Power delivery 65W, LAN, USB v. 3.2 (Gen 1, 5Gbit))
HDCP
Yes
Headphone connector
Yes
RJ45 (LAN)
x1
FEATURES
Â
KVM switch
Yes
Blue light reducer
Yes
Flicker free
Yes
Adaptive Sync support
HDMI: 3440 x 1440 @48-100Hz, DP / USB-C: 3440 x 1440 @48-120Hz
Extra
i-Style Colour
OSD languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL
Control buttons
Joystick controller: Push (Menu), Up, Down, Left (Eco), Right (Blue Light Reducer), Input, Volume +, Volume -, Power
User controls
Picture adjust, image adjust, colour settings, signal select, audio adjust, setup menu, extra1, extra2
Speakers
2 x 2W
Convenience
Kensington-lockâ„¢ prepared, DDC2B
MECHANICAL
Â
Display position adjustments
Height, swivel, tilt
Height adjustment
150mm
Swivel stand
90°; 45° left; 45° right
Tilt angle
23° up; 5° down
VESA mounting
100 x 100mm
Cable management system
Yes
ACCESSORIES INCLUDED
Â
Cables
Power, USB, HDMI, DP, USB-C
Other
Quick start guide, safety guide
POWER MANAGEMENT
Â
Power supply unit
Internal
Power supply
AC 100 - 240V, 50/60Hz
Power usage
56W typical, 0.5W stand by, 0.5W off mode
SUSTAINABILITY
Â
Regulations
TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
TCO Certified
XCB3494WQSN-B5 A
Energy efficiency class
G
EPEAT
Bronze
REACH SVHC
Above 0.1%: Lead
DIMENSIONS / WEIGHT
Â
Product dimensions W x H x D
809.5 x 431 (581) x 245.5mm
Box dimensions W x H x D
900 x 480 x 236mm
Weight (without box)
9.4kg
Weight (with box)
12.4kg
DISPLAY CHARACTERISTICS
Â
Design
Curved
Diagonal
34", 86.4 cm
Panel
VA panel, matte finish
Curved
1500R
Native resolution
3440 x 1440 @120Hz (4.9 megapixel UWQHD, DisplayPort & USB-C)
Aspect ratio
21:9
Panel brightness
300 cd/m²
Static contrast
3000:1
Advanced contrast
80M:1
Response time (MPRT)
0.4ms
Viewing zone
Horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support
16.7mln (sRGB: 99%; NTSC: 93%)
Horizontal Sync
30 - 185kHz
Viewable area W x H
797.2 x 333.7mm, 31.4 x 13.1"
Pixel pitch
0.232mm
Colour
Matte, black
INTERFACES / CONNECTORS / CONTROLS
Â
Signal input
HDMI x1 (v.2.0, 3440 x 1440 @ 100Hz), DisplayPort x1 (v.1.2, 3440 x 1440 @ 120Hz)
USB HUB
x3 (v. 3.2 (Gen 1, 5Gbit; DC5V, 900mA))
USB-C
x1 (3440 x 1440 @ 120Hz, PD 65W)
USB-C DOCK
x1 (Power delivery 65W, LAN, USB v. 3.2 (Gen 1, 5Gbit))
HDCP
Yes
Headphone connector
Yes
RJ45 (LAN)
x1
FEATURES
Â
KVM switch
Yes
Blue light reducer
Yes
Flicker free
Yes
Adaptive Sync support
HDMI: 3440 x 1440 @48-100Hz, DP / USB-C: 3440 x 1440 @48-120Hz
Extra
i-Style Colour
OSD languages
EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL
Control buttons
Joystick controller: Push (Menu), Up, Down, Left (Eco), Right (Blue Light Reducer), Input, Volume +, Volume -, Power
User controls
Picture adjust, image adjust, colour settings, signal select, audio adjust, setup menu, extra1, extra2
Speakers
2 x 2W
Convenience
Kensington-lockâ„¢ prepared, DDC2B
MECHANICAL
Â
Display position adjustments
Height, swivel, tilt
Height adjustment
150mm
Swivel stand
90°; 45° left; 45° right
Tilt angle
23° up; 5° down
VESA mounting
100 x 100mm
Cable management system
Yes
ACCESSORIES INCLUDED
Â
Cables
Power, USB, HDMI, DP, USB-C
Other
Quick start guide, safety guide
POWER MANAGEMENT
Â
Power supply unit
Internal
Power supply
AC 100 - 240V, 50/60Hz
Power usage
56W typical, 0.5W stand by, 0.5W off mode
SUSTAINABILITY
Â
Regulations
TCO Certified, CE, TÜV-Bauart, EAC, VCCI-B, PSE, RoHS support, ErP, WEEE, REACH, UKCA
TCO Certified
XCB3494WQSN-B5 A
Energy efficiency class
G
EPEAT
Bronze
REACH SVHC
Above 0.1%: Lead
DIMENSIONS / WEIGHT
Â
Product dimensions W x H x D
809.5 x 431 (581) x 245.5mm
Box dimensions W x H x D
900 x 480 x 236mm
Weight (without box)
9.4kg
Weight (with box)
12.4kg
