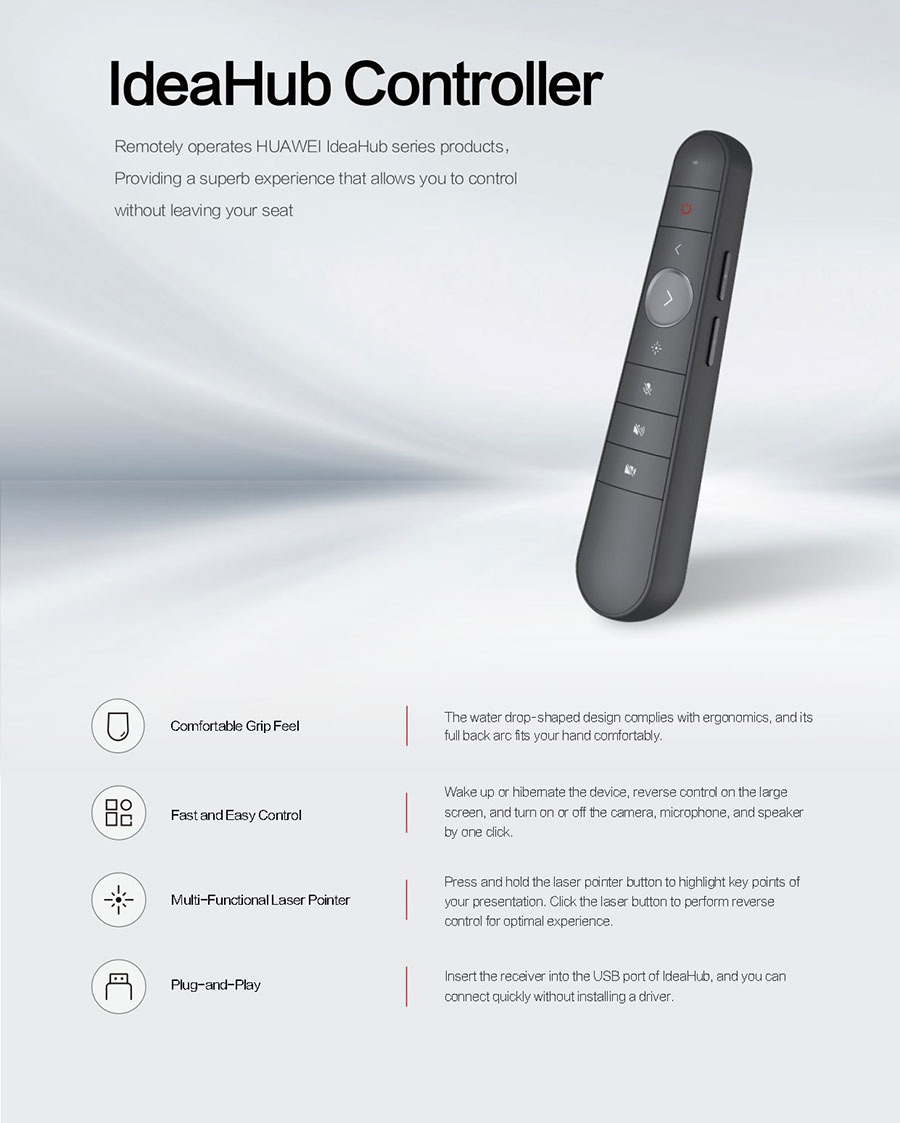

Huawei Digital Conference System Components IHC ldeaHub Controller, 2.4GHz Wireless Transmission, 9 Buttons, 2x Alkaline AAA Batteries, Gray | 23080128
()
Size
Check
serviceability at your Pincode
SpecificationsÂ
Model
IHC
System Compatibility
The IdeaHub Controller can be used with HUAWEI IdeaHub S, IdeaHub Pro, IdeaHub Enterprise, IdeaHub Board Pro, IdeaHub Board Edu, IdeaHub S2, IdeaHub B2, IdeaHub Board 2
Electrical Specifications
Static current
?15uA
Operating current
?50mA
Transmission distance
Straight-line distance ? 8 m
Transmission protocol
2.4 GHz wireless transmission
Indicator
Low battery alert: when the battery voltage is under 2.2 V, the red indicator blinks slowly for five times (on for 100 ms and off for 1500 ms)
Running duration
Two alkaline AAA batteries can support the Controller for about three months (typical value)
Mechanical Structure & Performance
Color
Gray
Dimensions (L x W x H)
145.3 mm x 31.7 mm x 23.5 mm
Number of buttons
9
Button lifespan
Front buttons ? 300,000 times, Side buttons ? 100,000 times
Weight
52.2 g (bare metal + USB receiver)
Environment Adaptability
Operating temperature
0?~+40?
Storage temperature range
-20?~+60?
Operating humidity
10%~90%
Reverse Control
The previous page, next page, and wireless mouse function support reverse control
Model
IHC
System Compatibility
The IdeaHub Controller can be used with HUAWEI IdeaHub S, IdeaHub Pro, IdeaHub Enterprise, IdeaHub Board Pro, IdeaHub Board Edu, IdeaHub S2, IdeaHub B2, IdeaHub Board 2
Electrical Specifications
Static current
?15uA
Operating current
?50mA
Transmission distance
Straight-line distance ? 8 m
Transmission protocol
2.4 GHz wireless transmission
Indicator
Low battery alert: when the battery voltage is under 2.2 V, the red indicator blinks slowly for five times (on for 100 ms and off for 1500 ms)
Running duration
Two alkaline AAA batteries can support the Controller for about three months (typical value)
Mechanical Structure & Performance
Color
Gray
Dimensions (L x W x H)
145.3 mm x 31.7 mm x 23.5 mm
Number of buttons
9
Button lifespan
Front buttons ? 300,000 times, Side buttons ? 100,000 times
Weight
52.2 g (bare metal + USB receiver)
Environment Adaptability
Operating temperature
0?~+40?
Storage temperature range
-20?~+60?
Operating humidity
10%~90%
Reverse Control
The previous page, next page, and wireless mouse function support reverse control
There are no ratings for this product yet
