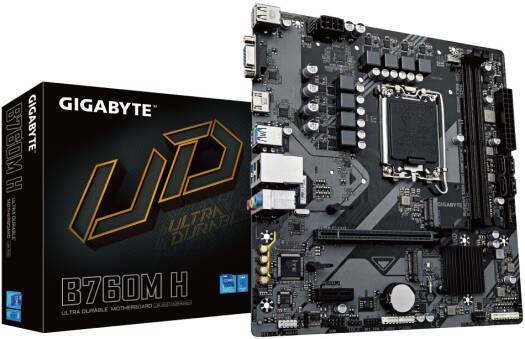

GIGABYTE B760M H LGA 1700 M-ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Sockets, 128GB Max Memory, 2x M.2 Slots, 1x PCIe 4.0 x16, Realtek GbE LAN chip | B760M-H

https://www.genx.ae/public/up/pr/og/2b917e72248b47b5f358937901773b4c.png

https://www.genx.ae/public/up/pr/og/55e22518847267c2cec2c19bf488544d.png

https://www.genx.ae/public/up/pr/og/e4ade2808e09b8bbf536c1e1e845db7e.png

GIGABYTE B760M H LGA 1700 M-ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Sockets, 128GB Max Memory, 2x M.2 Slots, 1x PCIe 4.0 x16, Realtek GbE LAN chip | B760M-H

Name: GIGABYTE B760M H LGA 1700 M-ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Sockets, 128GB Max Memory, 2x M.2 Slots, 1x PCIe 4.0 x16, Realtek GbE LAN chip | B760M-H
Brand: Gigabyte
SKU: Model
Rating: 5 (1 reviews)

BY Gigabyte

()

Stock Is Low - 1 Quantity

Size

warranty Applicable

High Performance

On Enquiry

100% Trusted Product

Request Callback

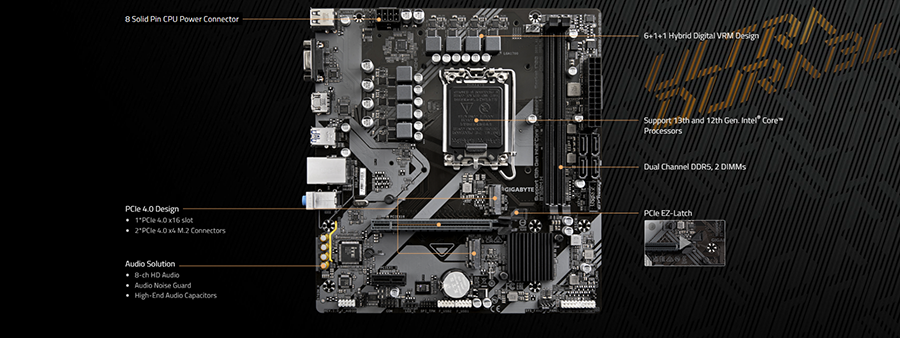

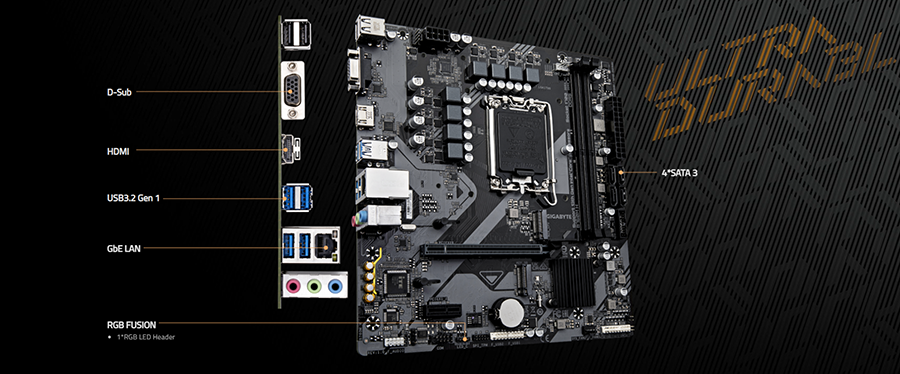

Specifications CPU LGA1700 socket: 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron®; L3 cache varies Chipset Intel® B760 Express Chipset Memory DDR5 8000(O.C.)/7800(O.C.)/.../4000 MT/s; 2 x DDR5 DIMM sockets up to 128 GB; ECC and non-ECC support Onboard Graphics Intel® HD Graphics; 1 x D-Sub (1920x1200@60 Hz), 1 x HDMI (4096x2160@60 Hz) Audio Realtek® Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out LAN Realtek® GbE LAN chip Expansion Slots 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (Chipset) Storage Interface 1 x M.2 (PCIe 4.0 x4/x2) (CPU), 1 x M.2 (PCIe 4.0 x4/x2) (Chipset), 4 x SATA 6Gb/s USB 6 x USB 3.2 Gen 1 (4 back, 2 internal), 6 x USB 2.0/1.1 (2 back, 4 internal) Internal I/O Connectors 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 3 x fan headers, 2 x M.2, 4 x SATA, RGB LED, S/PDIF Out, etc. Back Panel Connectors 2 x USB 2.0/1.1, 1 x D-Sub, 1 x HDMI, 4 x USB 3.2 Gen 1, 1 x RJ-45, 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control BIOS 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC), Q-Flash Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm

CPU LGA1700 socket: 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron®; L3 cache varies Chipset Intel® B760 Express Chipset Memory DDR5 8000(O.C.)/7800(O.C.)/.../4000 MT/s; 2 x DDR5 DIMM sockets up to 128 GB; ECC and non-ECC support Onboard Graphics Intel® HD Graphics; 1 x D-Sub (1920x1200@60 Hz), 1 x HDMI (4096x2160@60 Hz) Audio Realtek® Audio CODEC; 2/4/5.1/7.1-channel; S/PDIF Out LAN Realtek® GbE LAN chip Expansion Slots 1 x PCIe 4.0 x16 (CPU), 1 x PCIe 3.0 x1 (Chipset) Storage Interface 1 x M.2 (PCIe 4.0 x4/x2) (CPU), 1 x M.2 (PCIe 4.0 x4/x2) (Chipset), 4 x SATA 6Gb/s USB 6 x USB 3.2 Gen 1 (4 back, 2 internal), 6 x USB 2.0/1.1 (2 back, 4 internal) Internal I/O Connectors 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 3 x fan headers, 2 x M.2, 4 x SATA, RGB LED, S/PDIF Out, etc. Back Panel Connectors 2 x USB 2.0/1.1, 1 x D-Sub, 1 x HDMI, 4 x USB 3.2 Gen 1, 1 x RJ-45, 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage, Temperature, Fan speed, Water cooling flow rate detection, Fan fail warning, Fan speed control BIOS 128 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features GIGABYTE Control Center (GCC), Q-Flash Bundled Software Norton® Internet Security (OEM), LAN bandwidth management software Operating System Windows 11 64-bit, Windows 10 64-bit Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm

There are no ratings for this product yet

Model: B760M H SKU: 200833 (VAT inclusive price)

Enquire Now

Need help? Call on
+971-547912854

GIGABYTE B760M H LGA 1700 M-ATX Motherboard, Intel B760 Chipset, 2x DDR5 DIMM Sockets, 128GB Max Memory, 2x M.2 Slots, 1x PCIe 4.0 x16, Realtek GbE LAN chip | B760M-H

Need help? Call on +971-547912854
