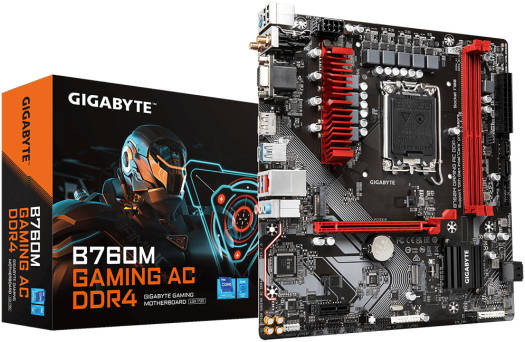

Gigabyte B760M GAMING AC DDR4 LGA1700 Micro ATX Motherboard, Intel B760, 2 x DDR4 DIMM, 64GB Max Memory, 2.5GbE LAN, 1x PCI Exp 4.0x16, 1x D-Sub, 1x HDMI, 1x DP, 1 x USB -C | B760M-GAMING-AC-DDR4

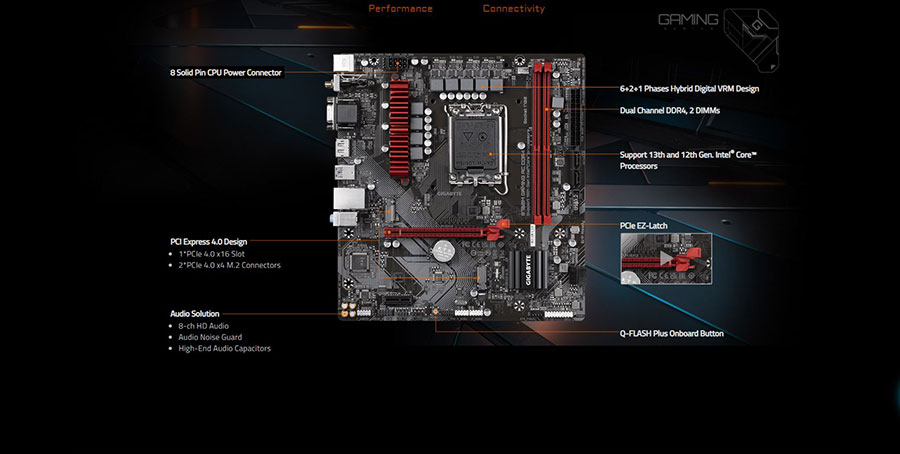

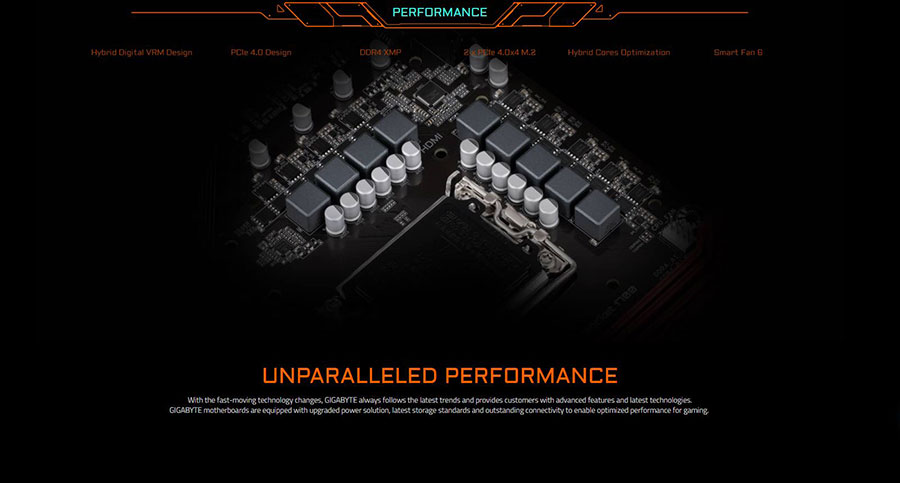

B760M GAMING AC DDR4Intel MotherboardKey Feature Intel® Socket LGA 1700?Support 13th and 12th Gen Series Processors Unparalleled Performance?Hybrid 6+2+1 Phases Digital VRM Solution Dual Channel DDR4?2*DIMMs XMP Memory Module Support Next Generation Storage?2*PCIe 4.0 x4 M.2 Connectors EZ-Latch? PCIe 4.0x16 Slot with Quick Release Design Fast Networks?2.5GbE LAN & Wi-Fi 802.11ac Extended Connectivity?Rear USB-C® 5Gb/s, DP, HDMI, D-Sub Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus? Update BIOS Without Installing the CPU, Memory, and Graphics Card     Specifications CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors   L3 cache varies with CPU   (Please refer to "CPU Support List" for more information.) Chipset Intel® B760 Express Chipset Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ ... (Refer to full list)   2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory   Dual channel memory architecture   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules   Support for Extreme Memory Profile (XMP) memory modules   (Please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:   1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz   1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz   * Support for HDMI 2.0 version and HDCP 2.3.   1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz   * Support for DisplayPort 1.2 version and HDCP 2.3   (Graphics specifications may vary depending on CPU support.)   Support for up to 3 displays at the same time Audio Realtek® Audio CODEC   High-Definition Audio   2/4/5.1/7.1-channel   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.   Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE)   WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band   BLUETOOTH 4.2   Support for 11ac wireless standard and up to 433 Gbps data rate   (Actual data rate may vary depending on the environment and equipment.) Expansion Slots CPU:   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16   Chipset:   1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 Storage Interface CPU:   1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)   Chipset:   1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)   4 x SATA 6Gb/s connectors   RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset:   1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support   5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)   2 x USB 2.0/1.1 ports on the back panel   Chipset+USB 2.0 Hubs:   4 x USB 2.0/1.1 ports available through the internal USB headers Internal I/O Connectors 1 x 24-pin ATX main power connector   1 x 8-pin ATX 12V power connector   1 x CPU fan header   3 x system fan headers   1 x addressable LED strip headers   1 x RGB LED strip headers   2 x M.2 Socket 3 connectors   4 x SATA 6Gb/s connectors   1 x front panel header   1 x front panel audio header   1 x S/PDIF Out header   1 x USB 3.2 Gen 1 header   2 x USB 2.0/1.1 headers   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)   1 x serial port header   1 x Q-Flash Plus button   1 x reset jumper   1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports   1 x PS/2 keyboard/mouse port   2 x SMA antenna connectors (1T1R)   1 x D-Sub port   1 x HDMI port   1 x DisplayPort   3 x USB 3.2 Gen 1 ports   1 x USB Type-C® port, with USB 3.2 Gen 1 support   1 x RJ-45 port   3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection   Temperature detection   Fan speed detection   Water cooling flow rate detection   Fan fail warning   Fan speed control   * Whether the fan speed control function is supported will depend on the fan you install. BIOS 1 x 128 Mbit flash   Use of licensed AMI UEFI BIOS   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for GIGABYTE Control Center (GCC)   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.   Support for Q-Flash   Support for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version)   LAN bandwidth management software Operating System Support for Windows 11 64-bit   Support for Windows 10 64-bit
