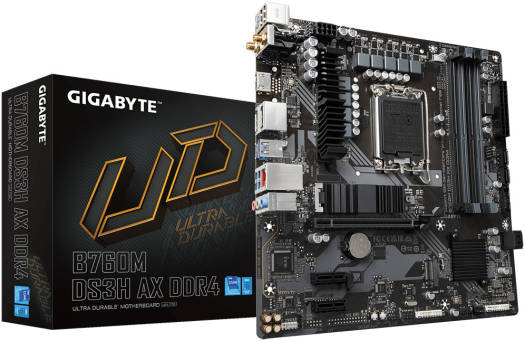

GIGABYTE B760M DS3H AX LGA1700 mATX Motherboard, Intel B760 Chipset, 4 x DDR4 DIMM, 128GB Max Capacity, PCIE 4.0, 2*M.2, 2.5GbE LAN / Wi-Fi 6E / BT 5.3, USB-Type-C/3.2, HDMI / DP | B760M-DS3H-AX-DDR4

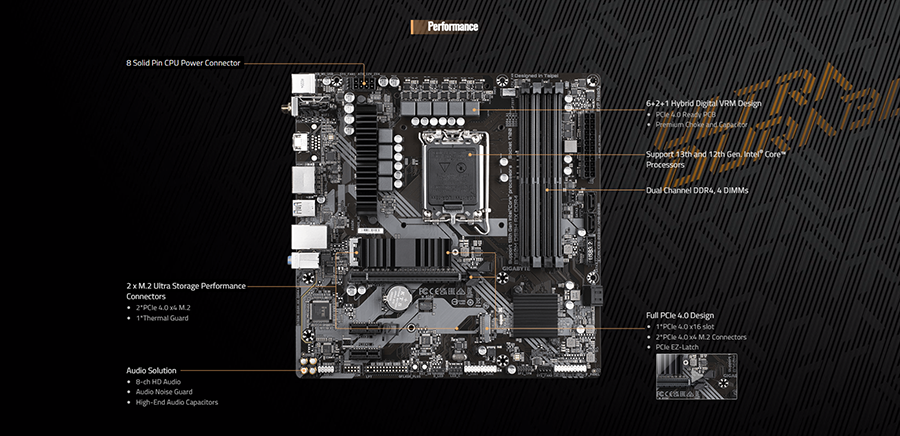

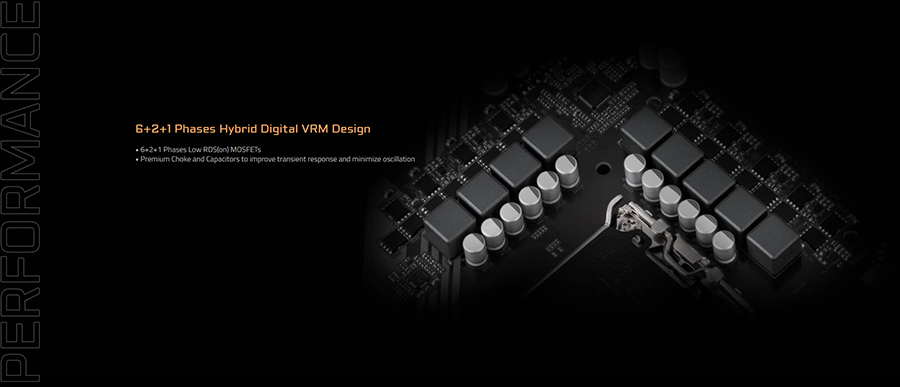

B760M DS3H AX DDR4 (rev. 1.x)Intel MotherboardKey Features Intel® Socket LGA 1700?Support 13th and 12th Gen Series Processors Unparalleled Performance?Hybrid 6+2+1 Phases Digital VRM Solution Dual Channel DDR4?4*DIMMs XMP Memory Module Support Next Generation Storage?2*PCIe 4.0 x4 M.2 Connectors M.2 Thermal Guard? To Ensure M.2 SSD Performance EZ-Latch? PCIe 4.0x16 Slot with Quick Release Design Fast Networks?2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity?Rear USB-C® 10Gb/s, DP, HDMI Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Q-Flash Plus? Update BIOS Without Installing the CPU, Memory, and Graphics Card     Specifications  CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors   L3 cache varies with CPU   (Please refer to "CPU Support List" for more information.) Chipset Intel® B760 Express Chipset Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ ... (Refer to full list)   4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory   Dual channel memory architecture   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules   Support for Extreme Memory Profile (XMP) memory modules   (Please refer to "Memory Support List" for more information.) Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support:   1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz   * Support for HDMI 2.0 version and HDCP 2.3.   1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz   * Support for DisplayPort 1.2 version and HDCP 2.3   1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz   * Support for DisplayPort 1.2 version.   (Graphics specifications may vary depending on CPU support.)   Support for up to triple-display at the same time Audio Realtek® Audio CODEC   High Definition Audio   2/4/5.1/7.1-channel   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.   Support for S/PDIF Out LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)   WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands   BLUETOOTH 5.2   Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate   Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)   WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands   BLUETOOTH 5.3   Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate   Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2)   WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands   BLUETOOTH 5.3   Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate   Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)   WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands   BLUETOOTH 5.3   Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate   (Actual data rate may vary depending on environment and equipment.) Expansion Slots CPU:   1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16   Chipset:   2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Storage Interface CPU:   1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)   Chipset:   1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)   4 x SATA 6Gb/s connectors   RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices USB Chipset:   1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support   5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)   2 x USB 2.0/1.1 ports on the back panel   Chipset+2 USB 2.0 Hubs:   4 x USB 2.0/1.1 ports available through the internal
