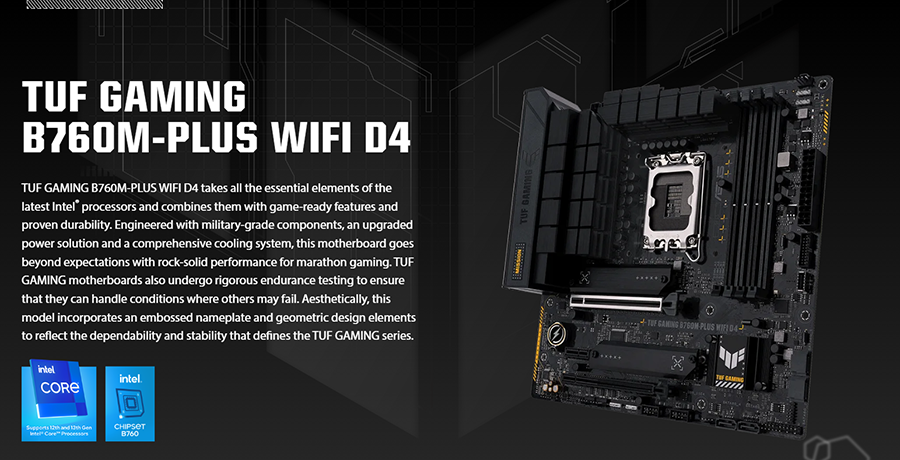

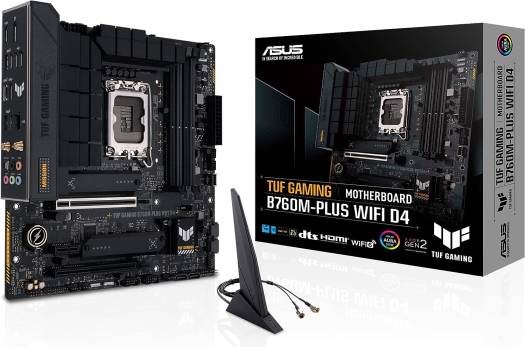

ASUS TUF Gaming B760M-PLUS WIFI D4 LGA1700 mATX Motherboard, 4x DDR4 DIMM /128GB Max Memory, Wi-Fi 6 / BT 5.2 / 2.5Gb ETH, PCIe 5.0, 2 x M.2, USB 3.2 Type-C / Thunderbolt, HDMI / DP | 90MB1DG0-M0EAY0

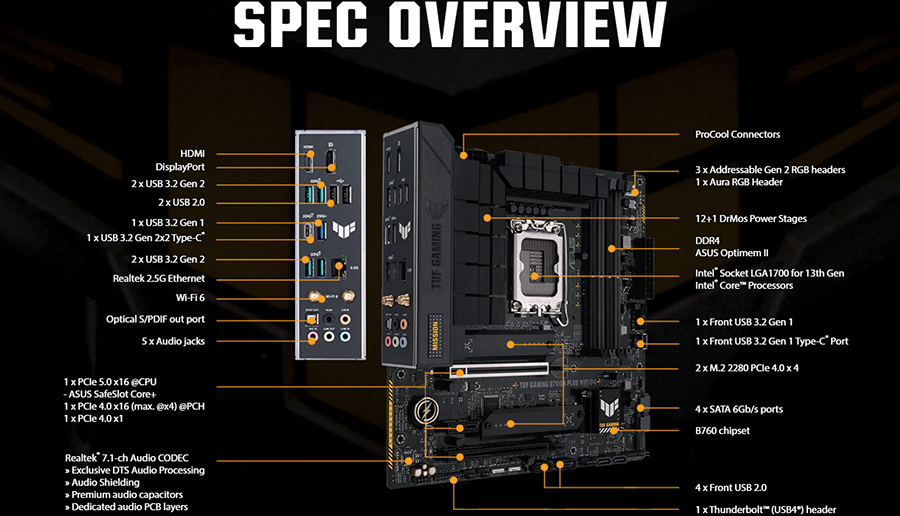

TUF GAMING B760M-PLUS WIFI D4  Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt (USB4) header support Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuard.Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences    Specifications   CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.     Chipset Intel® B760 Chipset Memory 4 x DIMM, Max. 128GB, DDR4  5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/4 x DIMM, Max. 192GB, DDR4  5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/     Graphics 1 x DisplayPort**1 x HDMI® port**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.  ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.  ***Supports 4K@60Hz as specified in HDMI 2.1.   Expansion Slots Intel® 13th & 12th Gen Processors1 x PCIe 5.0 x16 slotIntel® B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. Ethernet 1 x Realtek 2.5Gb EthernetTUF LANGuard Wireless & Bluetooth Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth® v5.2**The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. USB Rear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)4 x USB 3.2 Gen 2 ports (4 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)  Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports** USB_E4 and USB_EC3 can only be enabled/disabled simultaneously. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback "Audio Features  - Audio Shielding- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)4 x USB 3.2 Gen 2 ports (4 x Type-A)1 x USB 3.2 Gen 1 port (1 x Type-A)2 x USB 2.0 ports (2 x Type-A)  1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks  1 x Optical S/PDIF out port Internal I/O Connectors I/O Connectors  Fan and Cooling related  1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related  1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related  2 x M.2 slots (Key M)  4 x SATA 6Gb/s portsUSB  1 x USB 3.2 Gen 1 connector (supports USB Type-C®)  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x Front Panel Audio header (AAFP)  1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) header Special Features ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards  - TUF LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design  - M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink  - VRM heatsink designASUS EZ DIY- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headers Software Features ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Fan Xpert 2+- Power Saving- Two-Way AI Noise CancelationAI Suite 3  DIGI+ VRM- PC CleanerTUF GAMING CPU-ZDTS Audio ProcessingMyASUSNorton 360 for Gamers  WinRARUEFI BIOSASUS EZ DIY  - ASUS CrashFree BIOS 3  - ASUS EZ Flash 3  - ASUS UEFI BIOS EZ Mode BIOS 128 Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cables  Miscellaneous1 x ASUS Wi-Fi moving antennas  1 x M.2 Rubber Package1 x Screw package for M.2 SSD1 x TUF Gaming stickerDocumentation1 x TUF Certification card1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
