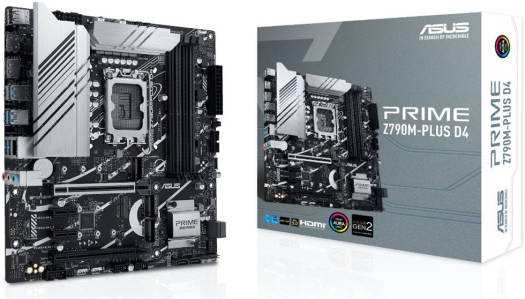

Asus Prime Z790M-PLUS D4 mATX Motherboard, Socket Intel LGA1700, Z790 Chipset, PCIe 5.0, 128GB DDR4 Max Memory, 3x M.2 Slots, Intel 1Gb Ethernet, Thunderbolt USB4 Support, Aura Sync | 90MB1D20-M0EAY0

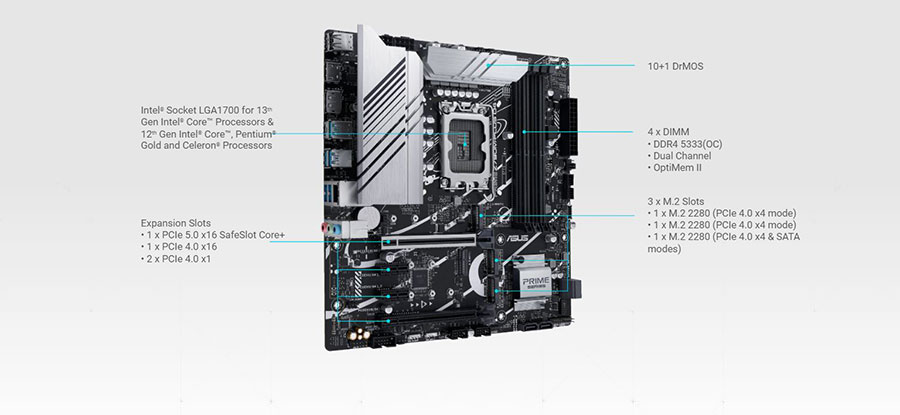

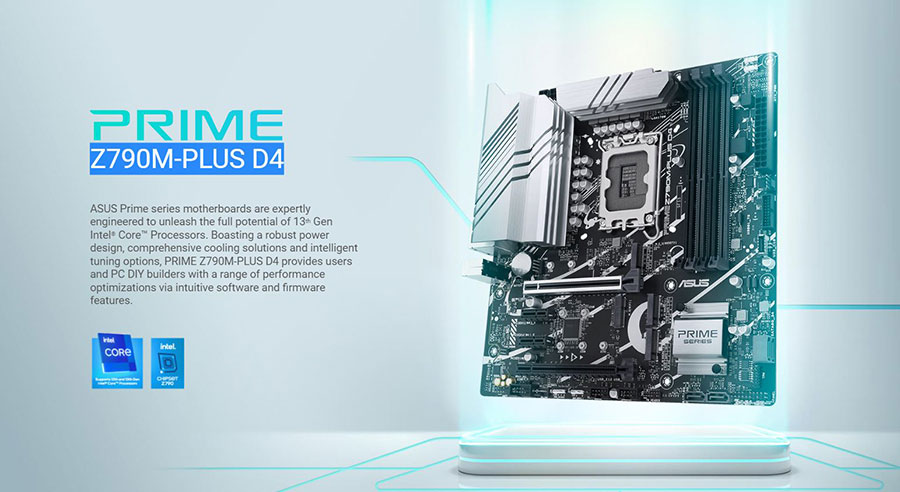

Prime Z790M-PLUS D4   ASUS Prime Z790M-PLUS D4, an Intel Z790 LGA 1700 mATX motherboard with PCIe® 5.0, three M.2 slots, 10+1 DrMOS, DDR4, Intel® 1 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) support, Arua Sync   Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors Enhanced power solution: 10+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery Next-gen connectivity: PCIe® 5.0, Intel® 1 Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ (USB4®) header support ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II     Specifications   CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for the CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type.Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for the CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset Intel® Z790 Chipset Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. Graphics 1 x DisplayPort**1 x HDMI® port****Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Supports max. 4K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMI 2.1. Expansion Slots Intel® 13th & 12th Gen Processors*1 x PCIe 5.0 x16 slotIntel® Z790 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)2 x PCIe 4.0 x1 slots* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® Z790 ChipsetM.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. Ethernet 1 x Intel® 1Gb EthernetASUS LANGuard Wireless & Bluetooth M.2 slot only (Key E, CNVi & PCIe)**Wi-Fi module is sold separately. USB Rear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.Rear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)4 x USB 3.2 Gen 1 ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI®  port1 x Intel® 1Gb Ethernet port3 x Audio jacks Internal I/O Connectors Fan and cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin + 12V Power connector1 x 4-pin + 12V Power connectorStorage related3 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x M.2 slot (Key E)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) header Special Features ASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with DrMOS)- LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS Thermal Solution- VRM heatsink designASUS EZ DIY- ProCoolAura Sync- Aura RGB header- Addressable Gen 2 headers Software Features ASUS Exclusive SoftwareArmoury Crate- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Power SavingAI Suite 3- TurboV EVO- DIGI+ VRM- PC CleanerASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS Manageability WOL by PME, PXE Accessories Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield2 x Screw packages for M.2 SSDDocumentation1 x User guide Operating System Windows® 11, Windows® 10 64-bit Form Factor mATX Form Factor
