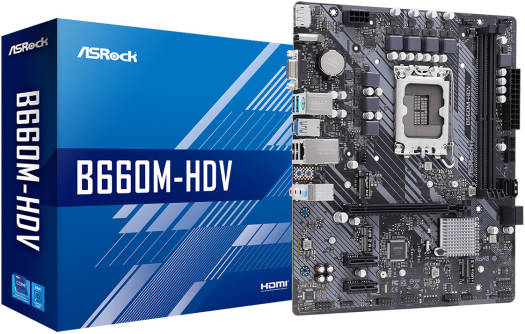

ASRock B660M-HDV LGA 1700 Micro ATX Motherboard, Intel B660 Chipset, 2x 2 Channel DDR4 64GB Max, Gigabit LAN, 1x M.2 SATA3 6.0 Gb/s Socket, 1 PCIe 4.0 x16, 1x HDMI/ DP 1.4 | 90-MXBH40-A0UAYZ

Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700) 6 Phase Power Design Supports DDR4 5066MHz (OC) 1 PCIe 4.0 x16, 2 PCIe 3.0 x11 M.2 Key-E for WiFi Graphics Output Options: HDMI, DisplayPort, D-Sub Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio 4 SATA31 Hyper M.2 (PCIe Gen4 x4)1 Ultra M.2 (PCIe Gen3 x4 & SATA3) 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)5 USB 2.0 (2 Rear, 3 Front) Intel® Gigabit LAN   Digi Power Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.       High Speed M.2 Solution This motherboard is capable of accomadating multiple M.2 storage devices, one of which can support PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.       Intel® Gigabit LAN Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!     M.2 (KEY E) For WiFi Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot. *Wi-Fi module is not included.     3 Graphics Outputs Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. *Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.         Premium Power Choke   Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. Sapphire Black PCB   Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.   High Density Glass Fabric PCB     High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.         Full Spike Protection Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.     Specification   Supported CPU CPU Socket Type  LGA 1700* Dedicated LGA1700 mounting bracket is required. CPU Type Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors*May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.* Supported CPU Technologies Turbo Boost Technology 3.0 Chipsets Chipset  Intel B660 Onboard Video Onboard Video Chipset  Supported only by CPU with integrated graphic Memory Number of Memory Slots 2x288pin (DDR4) Memory Standard DDR4 5066+(OC)** Supports DDR4 3200 natively.* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) Maximum Memory Supported 64GB Channel Supported  Dual Channel Expansion Slots PCI Express 4.0 x16 1 x PCI Express 4.0 x16* Supports NVMe SSD as boot disks. PCI Express x1 2 x PCI Express 3.0 x1 Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module Storage Devices SATA 6Gb/s  4 x SATA 6Gb/s** If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled. M.2 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes** Supports Intel Optane Technology (M2_2 only).* Supports Intel Volume Management Device (VMD).* Supports NVMe SSD as boot disks.* Supports ASRock U.2 Kit. Intel Optane Ready Yes SATA RAID 0/1/5/10 Onboard Audio Audio Chipset  Realtek ALC897/887 Audio Channels  7.1 Channels Onboard LAN LAN Chipset Intel I219-V Max LAN Speed 10/100/1000Mbps Rear Panel Ports Back I/O Ports 1 x PS/2 Mouse/Keyboard Port1 x D-Sub Port1 x HDMI Port1 x DisplayPort 1.43 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)2 x USB 2.0 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O Connectors Onboard USB 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) Other Connectors 1 x COM Port Header1 x SPI TPM Header1 x Chassis Intrusion and Speaker Header1 x CPU Fan Connector (4-pin)* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)* The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.* CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.1 x Front Panel Audio Connector Physical Spec Form Factor Micro ATX LED Lighting None RGB Dimensions (W x L) 243.84 mm x 200.66 mm Power Pin 1 x 24 pin ATX Power Connector1 x 8 pin 12V Power Connector Windows Compatibility Windows 11 Ready Features Features Unique Feature:ASRock Super Alloy- Premium Power Choke- Sapphire Black PCB- High Density Glass Fabric PCBASRock Hyper M.2 (PCIe Gen4x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS Feature:- 128Mb AMI UEFI Legal BIOS with multilingual GUI support- ACPI 6.0 Compliant wake up events- SMBIOS 2.7 Support- CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustmentSupport CD:- Drivers, Utilities, AntiVirus Software (Trial Version)Software and UEFI:Software- ASRock Motherboard Utility (A-Tuning)- ASRock XFast LAN* These utilities can be downloaded from ASRock Live Update & APP Shop.UEFI- ASRock EZ Mode- ASRock Full HD UEFI- ASRock My Favorites in UEFI- ASRock Instant Flash- ASRock Internet Flash- ASRock Easy RAID InstallerHardware Monitor:- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans- CASE OPEN detection- Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3VOS:- Microsoft Windows 10 64-bit / 11 64-bitCertifications:- FCC, CE- ErP/EuP ready (ErP/EuP ready power supply is required) Packaging Package Contents Accessories:- Quick Installation Guide, Support CD, I/O Shield- 2 x SATA Data Cables- 3 x Screws for M.2 Sockets
